3D scanning using multibeam laser

Master thesis by Kenn Tornslev

Prepared at the Image Analysis and Computer Graphics section of the Department of Informatics and Mathematical Modeling, at The Technical University of Denmark, DTU
Download section at the bottom of the page

Abstract:

In this project a complete 3D laser scanning system which uses a multibeam laser and a single camera is presented. The system is build from scratch and is aimed at small matchbox size object. The geometry of the scanner is adapted to fit an existing system which produces multispectral images of varies object and surface samples. The system as a whole can however easily be scaled to accommodate larger object and can therefore also be used for other applications.

Image of the shell object.

Image of the shell object with the lines projected onto the surface.

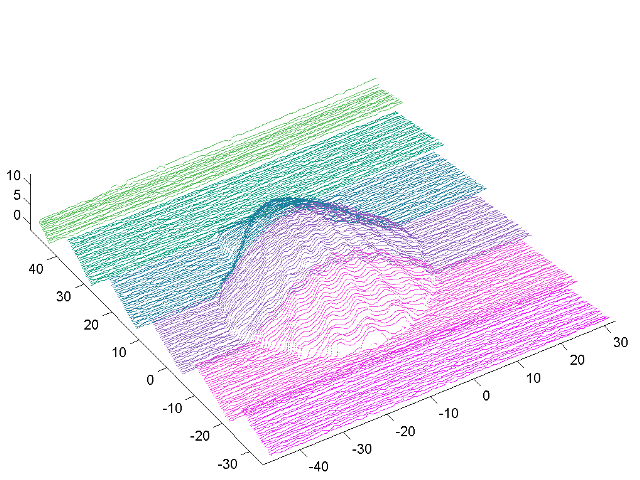

Digital model based raw 3D points.

Shaded digital model - the raw data has been resampled to a 1 by 1 millimeter grid.

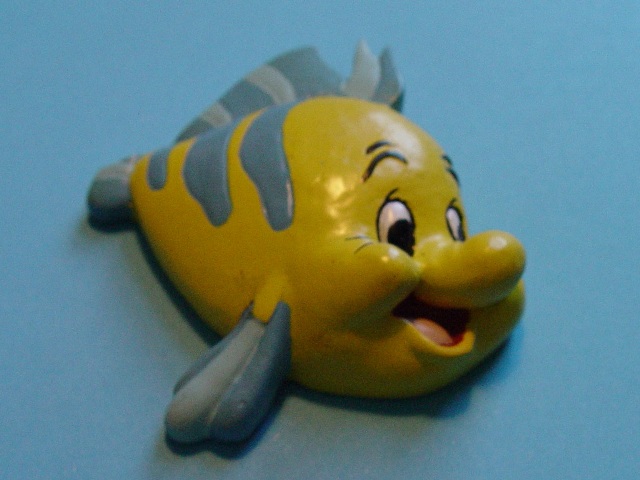

Fridge magnet fish.

Digital model based raw 3D points.

Downloads:

File: Size: Describtion:
3D scanner using multibeam laser.pdf 10.9 MB The thesis (pdf-file)
Fish Images.zip 12.9 MB The fridge magnet fish dataset. 100 jpeg images size 1024x768.
Shell Images.zip 9.34 MB The shell dataset. 103 jpeg images size 1024x768.
Camera Calibration Images.zip 7.75 MB 52 checkerboard images used for camera calibration
Laser Calibration Images.zip 3.57 MB 10 image pairs of the checkerboard and laser intersection lines
Fish-AVI.zip 23.0 MB Camera orbit of the digital fish model
Shell-AVI.zip 12.7 MB Camera orbit of the digital shell model
MatlabSource.zip x.xx MB Matlab source code.

Last update: 22-10-2005
